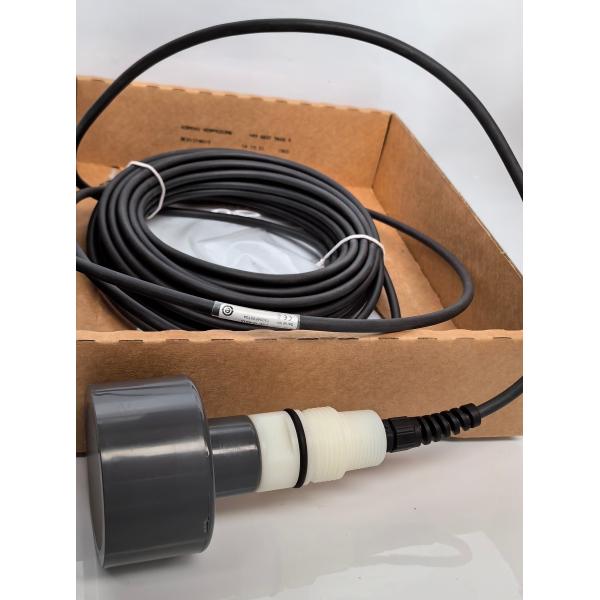

Endress Hauser Turbimax CUS71D Ultrasonic Interface Sensor 74mm IP68

Name: Endress Hauser Turbimax CUS71D Ultrasonic Interface Sensor 74mm IP68
Brand: Endress+Hauser
Price: 1 USD

Cheap Endress Hauser Turbimax CUS71D Ultrasonic Interface Sensor 74mm IP68 for sale

Brand Name : Endress+Hauser

Model Number : CUS71D-AA1A

Certification : EAC

Place of Origin : Germany

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : on request

Packaging Details : standard carton packing

Material : Sensor: ABS and epoxy resin Wiper: EPDM Housing: Polyamide

Dimension : Diameter: 74 mm(2.9 inch) Lenght standard sensor: 68 mm (2.7 inch) Lenght wiper sensor: 135 mm (5.3 inch)

Measuring principle : Ultrasonic return-time measurem

Application : Continious interface measurement in sedimentation basins

Measurement range : 0.3 to 10 m (1 to 32 ft)

Process pressure : Standard version: 0 to 6 bar (0 to 87 psi) Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)

Process temperature : 1 to 50 °C (34 to 122 °F)

Ingress protection : IP68

Contact Now

Endress Hauser Ultrasonic interface sensor Turbimax CUS71D-AA1A

SPECIFICATIONS

Measuring principle:Ultrasonic sensor
Application:Continious interface measurement in sedimentation basins
Installation:Submerged sensor with fixed cable

Measurement range:0.3 to 10 m (1 to 32 ft)

Measuring principle:Ultrasonic return-time measurement

Material:Sensor: ABS and epoxy resin；Wiper: EPDM；Housing: Polyamide

Dimension:Diameter: 74 mm(2.9 inch)；Lenght standard sensor: 68 mm (2.7 inch)；Lenght wiper sensor: 135 mm (5.3 inch)

Process temperature:1 to 50 °C (34 to 122 °F)
Process pressure:Standard version: 0 to 6 bar (0 to 87 psi)；Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)
Temperature sensor:-Ex certification None Connection

Process connection: G1 and NPT 3/4" Fixed cable 15 m
Ingress protection:IP68
Output / communication:Digital output for connection to Liquiline CM44x

Additional certifications:EAC

Field of application

Turbimax CUS71D continuously monitors the separation and transition zones in clarification and settling tanks, ensuring safe, economic and efficient sedimentation processes. It provides you with reliable, real-time measured values in real-time for quick control of valves and actuators. Turbimax CUS71D is ideal sensor for every measuring task - from protection of downstream water in wastewater treatment plants to optimization of backwash times in waterworks.

Turbimax CUS71D is an online ultrasonic interface sensor for:

Wastewater treatment plants:
- Solid sedimentation measurement
Drinking and process water:
- Solid sedimentation measurement
- Filter monitoring and filter backwash
- Level measurement in marble chip tanks
Utilities of all industries:
- Static separation processes
- Reuse of process water
- Product separation
- Flotation processes

Benefits

Reliable: Sensor provides accurate and continuous measurement of interface level or range.
Safe: Real-time interface information ensures quick control of valves and actuators.
Easy: Simple commissioning thanks to predefined calculation models.
Cost-saving: Automatic wiper cleaning function enables long-term, maintenance-free operation.
Intelligent: All calibration and sensor-specific data stored in the sensor.
Flexible: Mounting hardware suits all clarifier designs for optimal adaption to the measuring task
